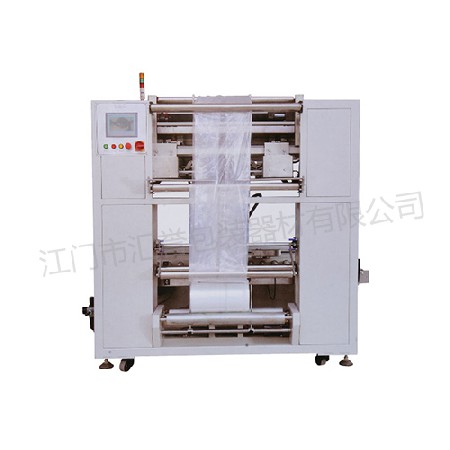

Hy-40t automatic carton bagging machine
2020-10-12 674
Product features:
The machine adopts multi servo control, which is fast, accurate and stable; it can automatically complete the carton input, positioning, film output, back cover, box entry, film cutting, folding and carton output. It can be connected with the front automatic box opener,and the rear automatic packing machine can realize the unmanned automatic packaging. It is suitable for the carton inner cover of food, solid oil, grease, edible oil, condiment, biscuit, leisure food, bulk packaged food, raw material, beverage, chemical industry, hardware, screw, electronics, rubber plastic, plastic and other productsBag.
| Main technical parameters | |
| Machine model | HY-40 |
| Carton size | L200-500mm |
| W200-400mm | |
| H+W/2≤500mm | |
| Table Height | 650mm |
| Packaging efficiency | 10Case / min |
| Film size | 460-800mmcartonL+W+150 |
| Machine size | L2000*W1500*H800mm |
| Voltage power | 380V50HZ2.5KW |
| Pressure | 5-6kg/cm3 |
-
10-08
What are the advantages of Jiangmen packaging equipment
Automatic packaging machine equipment is easy to preserve the quality of products and transport, by people's love and recognition. The automation level of oso is constantly improving in the manufacturing industry, and its application scope is expanding. Automatic operation in packaging machinery industry is changing the action method of packaging process and the processing method of packaging containers and materials. The automatic control packaging system can greatly improve the production effi
-
10-08
How to adjust the cutter of Jiangmen packing equipment
1) the adjustment knife seat of end seal and cutter has been carefully adjusted and strictly checked before delivery. Under normal circumstances, there is no need to adjust it. If it is necessary to adjust the knife seat, first use two pieces of white paper with a carbon paper in the center to investigate the indentation pattern. If the indentation is uniform and the lines are clear, the cutter seat is in the correct position and does not need to be adjusted. Otherwise, it is necessary to adjust
